Tau-381 (1N3R) Wild-Type Pre-formed Fibrils

Human Recombinant Tau-381 (1N3R) Wild-Type PFFs

Catalog No. SPR-514

0 out of 5 based on 0 customer ratings
Reviews (0) | Datasheet
Expression System E. coli
Tags No tag
SKU: SPR-514 Category:

Bulk Quote

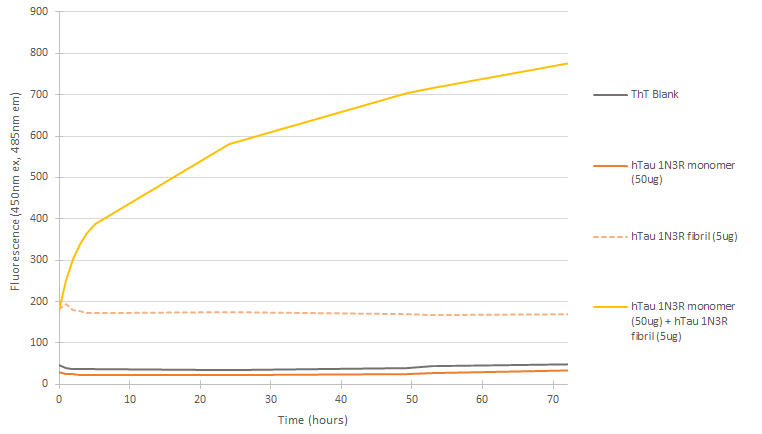

Thioflavin T assay of Tau-381 (1N3R) Wild-Type Pre-formed Fibrils Protein (SPR-514)Sedimentation assay of Tau-381 (1N3R) Wild-Type Pre-formed Fibrils Protein (SPR-514)TEM of Tau-381 (1N3R) Wild-Type Pre-formed Fibrils Protein (SPR-514)SDS-PAGE of Tau-381 (1N3R) Wild-Type Pre-formed Fibrils Protein (SPR-514)
Product Name Tau-381 (1N3R) Wild-Type Pre-formed Fibrils
Description

Human Recombinant Tau-381 (1N3R) Wild-Type PFFs
Applications WB, SDS PAGE, In vitro Assay
Concentration 2 mg/mL
Conjugates No tag
Dylight 488
Overview:

  • High fluorescence yield
  • High photostability
  • Less pH-sensitive
  • Excellent batch-to-batch reproducibility
  • Stringently QC tested
  • Molecular weight: 1011 g/mol

Dylight 488 Datasheet

 Dylight 488 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 493 nm

λem = 518 nm

εmax = 7.0×104

Laser = 488 nm



APC/Cy7
Overview:

  • High quantum yield
  • Excellent batch-to-batch reproducibility
  • Stringently QC tested

APC-Cy7 Datasheet



 ACP-Cy7 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 652 nm

λem = 790 nm

Laser = 594 or 633 nm





  Dylight 350
Overview:

  • High fluorescence intensity
  • High photostability
  • Less pH-sensitive
  • Excellent solubility in water
  • Stringently QC tested
  • Excellent batch-to-batch reproducibility
  • Molecular weight: 874 g/mol

Dylight 350 Datasheet

 Dylight 350 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 353 nm

λem = 432 nm

εmax = 1.5×104





  Dylight 405
Overview:

  • High fluorescence intensity
  • High photostability
  • Less pH-sensitive
  • Excellent batch-to-batch reproducibility
  • Stringently QC tested
  • Molecular weight: 793 g/mol

Dylight 405 Datasheet

 Dylight 405 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 400 nm

λem = 420 nm

εmax = 3.0×104

Laser = 405 nm



Dylight 594
Overview:

  • High fluorescence yield
  • High photostability
  • Less pH-sensitive
  • Excellent batch-to-batch reproducibility
  • Stringently QC tested
  • Molecular weight: 1078 g/mol

Dylight 594 Datasheet

 Dylight 594 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 593 nm

λem = 618 nm

εmax = 8.0×104

Laser = 526 nm



 Dylight 633
Overview:

  • High fluorescence yield
  • High photostability
  • Less pH-sensitive
  • Excellent batch-to-batch reproducibility
  • Stringently QC tested
  • Molecular weight: 1066 g/mol

Dylight 633 Datasheet

 Dylight 633 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 638 nm

λem = 658 nm

εmax = 1.7×105

Laser = 633 nm



 PerCP
Overview:

  • Peridinin-Chlorophyll-Protein Complex
  • Small phycobiliprotein
  • Isolated from red algae
  • Large stokes shift (195 nm)
  • Molecular Weight: 35 kDa
  • Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

PerCP Datasheet

  PerCP Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 482 nm

λem = 677 nm

εmax = 1.96 x 106

Laser = 488 nm



 PE/ATTO 594
PE/ATTO 594 is a tandem conjugate, where PE is excited at 535 nm and transfers energy to ATTO 594 via FRET (fluorescence resonance energy transfer), which emits at 627 nm.
Overview:

  • High fluorescence yield
  • High photostability
  • Very hydrophilic
  • Excellent solubility in water
  • Very little aggregation

PE/ATTO 594 Datasheet

 PE-ATTO 594 Fluorophore Conjugate Excitation and Emission Spectra Optical Properties:

λex = 535 nm

λem = 627 nm

Laser = 488 to 561 nm



  FITC (Fluorescein)
Overview:

  • Excellent fluorescence quantum yield
  • High rate of photobleaching
  • Good solubility in water
  • Broad emission spectrum
  • pH dependent spectra
  • Molecular formula: C20H12O5
  • Molar mass: 332.3 g/mol
  • Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

FITC-Fluorescent-conjugate

 FITC Fluorescein Fluorophore Excitation and Emission Spectra Optical Properties:

λex = 494 nm

λem = 520 nm

εmax = 7.3×104

Φf = 0.92

τfl = 5.0 ns

Brightness = 67.2

Laser = 488 nm

Filter set = FITC



 ATTO 700
Overview:

  • High fluorescence yield
  • Excellent thermal and photostability
  • Quenched by electron donors
  • Very hydrophilic
  • Good solubility in polar solvents
  • Zwitterionic dye
  • Molar Mass: 575 g/mol

ATTO 700 Datasheet

  ATTO 700 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 700 nm

λem = 719 nm

εmax = 1.25×105

Φf = 0.25

τfl = 1.6 ns

Brightness = 31.3

Laser = 676 nm

Filter set = Cy®5.5



 ATTO 680
Overview:

  • High fluorescence yield
  • Excellent thermal and photostability
  • Quenched by electron donors
  • Very hydrophilic
  • Good solubility in polar solvents
  • Zwitterionic dye
  • Molar Mass: 631 g/mol

ATTO 680 Datasheet

  ATTO 680 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 680 nm

λem = 700 nm

εmax = 1.25×105

Φf = 0.30

τfl = 1.7 ns

Brightness = 37.5

Laser = 633 – 676 nm

Filter set = Cy®5.5



 ATTO 655
Overview:

  • High fluorescence yield
  • High thermal and photostability
  • Excellent ozone resistance
  • Quenched by electron donors
  • Very hydrophilic
  • Good solubility in polar solvents
  • Zwitterionic dye
  • Molar Mass: 634 g/mol

ATTO 655 Datasheet

 ATTO 655 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 663 nm

λem = 684 nm

εmax = 1.25×105

Φf = 0.30

τfl = 1.8 ns

Brightness = 37.5

Laser = 633 – 647 nm

Filter set = Cy®5



 ATTO 633
Overview:

  • High fluorescence yield
  • High thermal and photostability
  • Moderately hydrophilic
  • Good solubility in polar solvents
  • Stable at pH 4 – 11
  • Cationic dye, perchlorate salt
  • Molar Mass: 652.2 g/mol

ATTO 633 Datasheet

 ATTO 633 Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 629 nm

λem = 657 nm

εmax = 1.3×105

Φf = 0.64

τfl = 3.2 ns

Brightness = 83.2

Laser = 633 nm

Filter set = Cy®5



 ATTO 594
Overview:

  • High fluorescence yield
  • High photostability
  • Very hydrophilic
  • Excellent solubility in water
  • Very little aggregation
  • New dye with net charge of -1
  • Molar Mass: 1137 g/mol
  • Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

ATTO 594 Datasheet

  ATTO 594 Fluorophore Excitation and Emission Spectrum Optical Properties:

λex = 601 nm

λem = 627 nm

εmax = 1.2×105

Φf = 0.85

τfl = 3.5 ns

Brightness = 102

Laser = 594 nm

Filter set = Texas Red®



 ATTO 565
Overview:

  • High fluorescence yield
  • High thermal and photostability
  • Good solubility in polar solvents
  • Excellent solubility in water
  • Very little aggregation
  • Rhodamine dye derivative
  • Molar Mass: 611 g/mol

ATTO 565 Datasheet

  ATTO 565 Fluorophore Excitation and Emission Spectra Optical Properties:

λex = 563 nm

λem = 592 nm

εmax = 1.2×105

Φf = 0.9

τfl = 3.4 n

Brightness = 10

Laser = 532 nm

Filter set = TRITC



  ATTO 488
Overview:

  • High fluorescence yield
  • High photostability
  • Very hydrophilic
  • Excellent solubility in water
  • Very little aggregation
  • New dye with net charge of -1
  • Molar Mass: 804 g/mol
  • Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

ATTO 488 Datasheet

   ATTO 488 Fluorophore Excitation and Emission Spectra Optical Properties:

λex = 501 nm

λem = 523 nm

εmax = 9.0×104

Φf = 0.80

τfl = 4.1 ns

Brightness = 72

Laser = 488 nm

Filter set = FITC



  ATTO 390
Overview:

  • High fluorescence yield
  • Large Stokes-shift (89 nm)
  • Good photostability
  • Moderately hydrophilic
  • Good solubility in polar solvents
  • Coumarin derivate, uncharged
  • Low molar mass: 343.42 g/mol
  • Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

ATTO 390 Datasheet

 ATTO 390 Fluorescent Dye Excitation and Emission Spectra Optical Properties:

λex = 390 nm

λem = 479 nm

εmax = 2.4×104

Φf = 0.90

τfl = 5.0 ns

Brightness = 21.6

Laser = 365 or 405 nm



APC (Allophycocyanin)
Overview:

  • High quantum yield
  • Large phycobiliprotein
  • 6 chromophores per molecule
  • Isolated from red algae
  • Molecular Weight: 105 kDa
  • Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

APC Datasheet

  APC Fluorophore Absorption and Emission Spectrum Optical Properties:

λex = 650 nm

λem = 660 nm

εmax = 7.0×105

Φf = 0.68

Brightness = 476

Laser = 594 or 633 nm

Filter set = Cy®5



Streptavidin

Properties:

  • Homo-tetrameric protein purified from Streptomyces avidinii which binds four biotin molecules with extremely high affinity
  • Molecular weight: 53 kDa
  • Formula: C10H16N2O3S
  • Applications: Western blot, immunohistochemistry, and ELISA

Streptavidin Datasheet

BiotinBiotin Conjugate Structure

Properties:

  • Binds tetrameric avidin proteins including Streptavidin and neuravidin with very high affinity
  • Molar mass: 244.31 g/mol
  • Formula: C10H16N2O3S
  • Applications: Western blot, immunohistochemistry, and ELISA*

*The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

Biotin Datasheet

HRP (Horseradish peroxidase)

Properties:

  • Enzymatic activity is used to amplify weak signals and increase visibility of a target
  • Readily combines with hydrogen peroxide (H2O2) to form HRP-H2O2 complex which can oxidize various hydrogen donors
  • Catalyzes the conversion of:
    • Chromogenic substrates (e.g. TMB, DAB, ABTS) into coloured products
    • Chemiluminescent substrates (e.g. luminol and isoluminol) into light emitting products via enhanced chemiluminescence (ECL)
    • Fluorogenic substrates (e.g. tyramine, homovanillic acid, and 4-hydroxyphenyl acetic acid) into fluorescent products
  • High turnover rate enables rapid generation of a strong signal
  • 44 kDa glycoprotein
  • Extinction coefficient: 100 (403 nm)
  • Applications: Western blot, immunohistochemistry, and ELISA*
    • *The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

HRP Datasheet

AP (Alkaline Phosphatase)

Properties:

  • Broad enzymatic activity for phosphate esters of alcohols, amines, pyrophosphate, and phenols
  • Commonly used to dephosphorylate the 5’-termini of DNA and RNA to prevent self-ligation
  • Catalyzes the conversion of:
    • Chromogenic substrates (e.g. pNPP, naphthol AS-TR phosphate, BCIP) into coloured products
    • Fluorogenic substrates (e.g. 4-methylumbelliferyl phosphate) into fluorescent products
  • Molecular weight: 140 kDa
  • Applications: Western blot, immunohistochemistry, and ELISA

AP Datasheet

  R-PE (R-Phycoerythrin)
Overview:

  • Broad excitation spectrum
  • High quantum yield
  • Photostable
  • Member of the phycobiliprotein family
  • Isolated from red algae
  • Excellent solubility in water
  • Molecular Weight: 250 kDa



  • Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

R-PE Datasheet

  R-PE Fluorophore Excitation and Emission Spectra Optical Properties:

λex = 565 nm

λem = 575 nm

εmax = 2.0×106

Φf = 0.84

Brightness = 1.68 x 103

Laser = 488 to 561 nm

Filter set = TRITC


Nature Recombinant
Species Human
Expression System E. coli
Amino Acid Sequence MAEPRQEFEVMEDHAGTYGLGDRKDQGGYTMHQDQEGDTDAGLKESPLQTPTEDGSEEPGSETSDAKSTPTAEAEEAGIGDTPSLEDEAAGHVTQARMVSKSKDGTGSDDKKAKGADGKTKIATPRGAAPPGQKGQANATRIPAKTPPAPKTPPSSGEPPKSGDRSGYSSPGSPGTPGSRSRTPSLPTPPTREPKKVAVVRTPPKSPSSAKSRLQTAPVPMPDLKNVKSKIGSTENLKHQPGGGKVQIVYKPVDLSKVTSKCGSLGNIHHKPGGGQVEVKSEKLDFKDRVQSKIGSLDNITHVPGGGNKKIETHKLTFRENAKAKTDHGAEIVYKSPVVSGDTSPRHLSNVSSTGSIDMVDSPQLATLADEVSASLAKQGL
Purity >95%
Other Resources Sonication Protocol
Protein Length 381 aa
Protein Size 39.72 kDa
Field of Use Not for use in humans. Not for use in diagnostics or therapeutics. For in vitro research use only.

Properties

Storage Buffer 10mM Hepes pH 7.4, 100mM NaCl
Storage Temperature -80ºC
Shipping Temperature Dry Ice. Shipping note: Product will be shipped separately from other products purchased in the same order.
Purification Ion-exchange Purified
Cite This Product Human Recombinant Tau-381 (1N3R) Wild-Type Pre-formed Fibrils (StressMarq Biosciences | Victoria, BC CANADA | Catalog# SPR-514)
Certificate of Analysis Protein certified >95% pure on SDS-PAGE & Nanodrop analysis. Low endotoxin <5 EU/mL @ 2mg/mL.
Other Relevant Information Monomer source is catalog# SPR-513.

Biological Description

Alternative Names Tau 381, Tau-B, Tau-D, Tau-40, MAPT, TAU, MTBT1, MTBT2, MAPTL, PPND, PPP1R103, FTDP-17, PHF-Tau, Paired Helical Filament-Tau, Neurofibrillary Tangle, Microtubule-associated tau, Isoform 3, G Protein Beta1/Gamma2 Subunit-Interacting Factor 1, Tau PFFs
Research Areas Alzheimer's Disease, Neurodegeneration, Neuroscience, Tangles & Tau
Swiss Prot P10636-4
Scientific Background Tau-381, also known as the 1N3R isoform of the microtubule-associated protein tau (MAPT), is a naturally occurring variant composed of 381 amino acids. It includes one N-terminal insert and three microtubule-binding repeat domains, contributing to its role in microtubule stabilization and neuronal plasticity. This isoform is particularly relevant in tauopathies characterized by selective 3R tau aggregation, such as Pick’s disease.

Under pathological conditions, Tau-381 can misfold and assemble into β-sheet-rich fibrillar aggregates. Pre-formed fibrils (PFFs) generated from wild-type Tau-381 replicate key structural and biochemical features of tau aggregates found in human neurodegenerative diseases. These fibrils efficiently seed endogenous tau aggregation, promote neurofibrillary tangle formation, and drive neurodegenerative processes including synaptic dysfunction and neuronal loss.

Tau-381 PFFs are widely used in experimental models to study tau propagation, misfolding, and toxicity. Their reproducibility and disease relevance make them ideal for investigating prion-like transmission, isoform-specific pathology, and therapeutic intervention strategies. They also serve as robust platforms for screening compounds that inhibit tau aggregation, enhance clearance, or restore neuronal function.

By mimicking the core pathological features of 3R tau-driven neurodegeneration, Tau-381 wild-type PFFs accelerate translational research and therapeutic development for tauopathies such as Pick’s disease and Alzheimer’s disease.
References 1. Goedert et al. 1989. Multiple isoforms of human microtubule-associated protein tau: sequences and localization in neurofibrillary tangles of Alzheimer’s disease. Neuron. DOI: 10.1016/0896-6273(89)90210-9
2. Goedert, Eisenberg and Crowther. 2017. Propagation of Tau Aggregates and Neurodegeneration. Annual Review of Neuroscience. DOI: 10.1146/annurev-neuro-072116-031153
3. Dregni et al. 2022. Fluent molecular mixing of Tau isoforms in Alzheimer’s disease neurofibrillary tangles. Nature communications. DOI: 10.1038/s41467-022-30585-0

Product Images

<p>Representative TEM image of E. coli-expressed Tau 1N3R Pre-Formed Fibrils, 200nm scale. Negative stain transmission electron microscopy images of SPR-514 acquired at 80 Kv on carbon coated 400 mesh copper grids using phosphotungstic acid and uranyl acetate stain.</p>

Representative TEM image of E. coli-expressed Tau 1N3R Pre-Formed Fibrils, 200nm scale. Negative stain transmission electron microscopy images of SPR-514 acquired at 80 Kv on carbon coated 400 mesh copper grids using phosphotungstic acid and uranyl acetate stain.

<p>In vitro seeding activity of human tau-381 (1N3R) monomers in ThT assay. Tau 1N3R pre-formed fibrils (SPR-514) seed fibril formation of human tau 1N3R monomers over 72 hours. Reactions (100uL) shaken at 600 rpm in Greiner-Bio 96 Well Non-Binding Cell Culture Microplates, Black (Greiner-Bio Catalog #655900) at 37oC in the presence of 25 uM ThT and 10 uM Heparin and read with an XPS Microplate Reader set at 450nmex/485nmem</p>

In vitro seeding activity of human tau-381 (1N3R) monomers in ThT assay. Tau 1N3R pre-formed fibrils (SPR-514) seed fibril formation of human tau 1N3R monomers over 72 hours. Reactions (100uL) shaken at 600 rpm in Greiner-Bio 96 Well Non-Binding Cell Culture Microplates, Black (Greiner-Bio Catalog #655900) at 37oC in the presence of 25 uM ThT and 10 uM Heparin and read with an XPS Microplate Reader set at 450nmex/485nmem

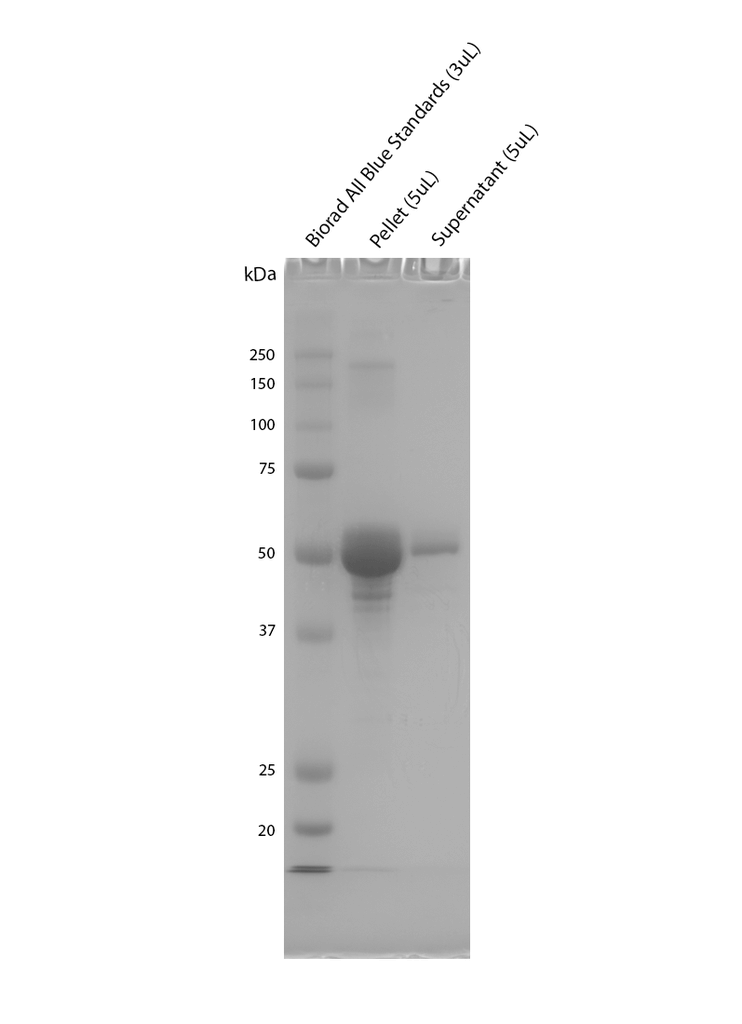

<p>Sedimentation assay on E. coli expressed hTau-381 (1N3R) Pre-formed Fibrils. Samples were spun down at 15,000 x g. Fibril samples are prepared in denaturing conditions prior to running on the gel. SDS-PAGE analysis on a 12% Tris-Glycine gel shows the majority of the fibrils are insoluble.</p>

Sedimentation assay on E. coli expressed hTau-381 (1N3R) Pre-formed Fibrils. Samples were spun down at 15,000 x g. Fibril samples are prepared in denaturing conditions prior to running on the gel. SDS-PAGE analysis on a 12% Tris-Glycine gel shows the majority of the fibrils are insoluble.

<p>Representative TEM image of E. coli-expressed Tau 1N3R Pre-Formed Fibrils, 500nm scale. Negative stain transmission electron microscopy images of SPR-514 acquired at 80 Kv on carbon coated 400 mesh copper grids using phosphotungstic acid and uranyl acetate stain.</p>

Representative TEM image of E. coli-expressed Tau 1N3R Pre-Formed Fibrils, 500nm scale. Negative stain transmission electron microscopy images of SPR-514 acquired at 80 Kv on carbon coated 400 mesh copper grids using phosphotungstic acid and uranyl acetate stain.

<p>SDS-PAGE analysis of purified E. coli expressed hTau-381 (1N3R) PFFs on a 12% Tris-Glycine gel. Note: fibril samples are prepared in denaturing conditions prior to running on the gel, and are not SDS-stable.</p>

SDS-PAGE analysis of purified E. coli expressed hTau-381 (1N3R) PFFs on a 12% Tris-Glycine gel. Note: fibril samples are prepared in denaturing conditions prior to running on the gel, and are not SDS-stable.

Reviews

Reviews

There are no reviews yet.

Be the first to review “Tau-381 (1N3R) Wild-Type Pre-formed Fibrils”

Your email address will not be published. Required fields are marked *
