Tau dGAE (297-391) Pre-formed Fibrils

Name: Tau dGAE (297-391) Pre-formed Fibrils
SKU: SPR-461
Availability: InStock
Rating: 5.00 (1 reviews)

Human Recombinant Tau dGAE (297-391) PFFs

Catalog No. SPR-461

5.00 out of 5 based on 1 customer rating

Reviews (1) | Datasheet

Expression System	E. coli
Tags	No tag

SKU: SPR-461 Category: Proteins

Size

Clear

Bulk Quote

TEM of Active Human Recombinant Truncated Tau Fragment (AA297-391) (dGAE) Protein Pre-formed Fibrils (SPR-461)

Product Name Tau dGAE (297-391) Pre-formed Fibrils

Description

Human Recombinant Tau dGAE (297-391) PFFs

Applications WB, SDS-PAGE, In vivo assay, In vitro assay

Concentration 2 mg/mL

Conjugates

No tag

Dylight 488

Overview:

High fluorescence yield
High photostability
Less pH-sensitive
Excellent batch-to-batch reproducibility
Stringently QC tested
Molecular weight: 1011 g/mol

Dylight 488 Datasheet

Dylight 488 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 493 nm

λ_em = 518 nm

ε_max = 7.0×10⁴

Laser = 488 nm

APC/Cy7

Overview:

High quantum yield
Excellent batch-to-batch reproducibility
Stringently QC tested

APC-Cy7 Datasheet

ACP-Cy7 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 652 nm

λ_em = 790 nm

Laser = 594 or 633 nm

Dylight 350

Overview:

High fluorescence intensity
High photostability
Less pH-sensitive
Excellent solubility in water
Stringently QC tested
Excellent batch-to-batch reproducibility
Molecular weight: 874 g/mol

Dylight 350 Datasheet

Dylight 350 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 353 nm

λ_em = 432 nm

ε_max = 1.5×10⁴

Dylight 405

Overview:

High fluorescence intensity
High photostability
Less pH-sensitive
Excellent batch-to-batch reproducibility
Stringently QC tested
Molecular weight: 793 g/mol

Dylight 405 Datasheet

Dylight 405 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 400 nm

λ_em = 420 nm

ε_max = 3.0×10⁴

Laser = 405 nm

Dylight 594

Overview:

High fluorescence yield
High photostability
Less pH-sensitive
Excellent batch-to-batch reproducibility
Stringently QC tested
Molecular weight: 1078 g/mol

Dylight 594 Datasheet

Dylight 594 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 593 nm

λ_em = 618 nm

ε_max = 8.0×10⁴

Laser = 526 nm

Dylight 633

Overview:

High fluorescence yield
High photostability
Less pH-sensitive
Excellent batch-to-batch reproducibility
Stringently QC tested
Molecular weight: 1066 g/mol

Dylight 633 Datasheet

Dylight 633 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 638 nm

λ_em = 658 nm

ε_max = 1.7×10⁵

Laser = 633 nm

PerCP

Overview:

Peridinin-Chlorophyll-Protein Complex
Small phycobiliprotein
Isolated from red algae
Large stokes shift (195 nm)
Molecular Weight: 35 kDa
Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

PerCP Datasheet

PerCP Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 482 nm

λ_em = 677 nm

ε_max = 1.96 x 10⁶

Laser = 488 nm

PE/ATTO 594

PE/ATTO 594 is a tandem conjugate, where PE is excited at 535 nm and transfers energy to ATTO 594 via FRET (fluorescence resonance energy transfer), which emits at 627 nm.

Overview:

High fluorescence yield
High photostability
Very hydrophilic
Excellent solubility in water
Very little aggregation

PE/ATTO 594 Datasheet

PE-ATTO 594 Fluorophore Conjugate Excitation and Emission Spectra

Optical Properties:

λ_ex = 535 nm

λ_em = 627 nm

Laser = 488 to 561 nm

FITC (Fluorescein)

Overview:

Excellent fluorescence quantum yield
High rate of photobleaching
Good solubility in water
Broad emission spectrum
pH dependent spectra
Molecular formula: C₂₀H₁₂O₅
Molar mass: 332.3 g/mol
Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

FITC-Fluorescent-conjugate

FITC Fluorescein Fluorophore Excitation and Emission Spectra

Optical Properties:

λ_ex = 494 nm

λ_em = 520 nm

ε_max = 7.3×10⁴

Φ_f = 0.92

τ_fl = 5.0 ns

Brightness = 67.2

Laser = 488 nm

Filter set = FITC

ATTO 700

Overview:

High fluorescence yield
Excellent thermal and photostability
Quenched by electron donors
Very hydrophilic
Good solubility in polar solvents
Zwitterionic dye
Molar Mass: 575 g/mol

ATTO 700 Datasheet

ATTO 700 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 700 nm

λ_em = 719 nm

ε_max = 1.25×10⁵

Φ_f = 0.25

τ_fl = 1.6 ns

Brightness = 31.3

Laser = 676 nm

Filter set = Cy®5.5

ATTO 680

Overview:

High fluorescence yield
Excellent thermal and photostability
Quenched by electron donors
Very hydrophilic
Good solubility in polar solvents
Zwitterionic dye
Molar Mass: 631 g/mol

ATTO 680 Datasheet

ATTO 680 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 680 nm

λ_em = 700 nm

ε_max = 1.25×10⁵

Φ_f = 0.30

τ_fl = 1.7 ns

Brightness = 37.5

Laser = 633 – 676 nm

Filter set = Cy®5.5

ATTO 655

Overview:

High fluorescence yield
High thermal and photostability
Excellent ozone resistance
Quenched by electron donors
Very hydrophilic
Good solubility in polar solvents
Zwitterionic dye
Molar Mass: 634 g/mol

ATTO 655 Datasheet

ATTO 655 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 663 nm

λ_em = 684 nm

ε_max = 1.25×10⁵

Φ_f = 0.30

τ_fl = 1.8 ns

Brightness = 37.5

Laser = 633 – 647 nm

Filter set = Cy®5

ATTO 633

Overview:

High fluorescence yield
High thermal and photostability
Moderately hydrophilic
Good solubility in polar solvents
Stable at pH 4 – 11
Cationic dye, perchlorate salt
Molar Mass: 652.2 g/mol

ATTO 633 Datasheet

ATTO 633 Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 629 nm

λ_em = 657 nm

ε_max = 1.3×10⁵

Φ_f = 0.64

τ_fl = 3.2 ns

Brightness = 83.2

Laser = 633 nm

Filter set = Cy®5

ATTO 594

Overview:

High fluorescence yield
High photostability
Very hydrophilic
Excellent solubility in water
Very little aggregation
New dye with net charge of -1
Molar Mass: 1137 g/mol
Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

ATTO 594 Datasheet

ATTO 594 Fluorophore Excitation and Emission Spectrum

Optical Properties:

λ_ex = 601 nm

λ_em = 627 nm

ε_max = 1.2×10⁵

Φ_f = 0.85

τ_fl = 3.5 ns

Brightness = 102

Laser = 594 nm

Filter set = Texas Red®

ATTO 565

Overview:

High fluorescence yield
High thermal and photostability
Good solubility in polar solvents
Excellent solubility in water
Very little aggregation
Rhodamine dye derivative
Molar Mass: 611 g/mol

ATTO 565 Datasheet

ATTO 565 Fluorophore Excitation and Emission Spectra

Optical Properties:

λ_ex = 563 nm

λ_em = 592 nm

ε_max = 1.2×10⁵

Φ_f = 0.9

τ_fl = 3.4 n

Brightness = 10

Laser = 532 nm

Filter set = TRITC

ATTO 488

Overview:

High fluorescence yield
High photostability
Very hydrophilic
Excellent solubility in water
Very little aggregation
New dye with net charge of -1
Molar Mass: 804 g/mol
Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

ATTO 488 Datasheet

ATTO 488 Fluorophore Excitation and Emission Spectra

Optical Properties:

λ_ex = 501 nm

λ_em = 523 nm

ε_max = 9.0×10⁴

Φ_f = 0.80

τ_fl = 4.1 ns

Brightness = 72

Laser = 488 nm

Filter set = FITC

ATTO 390

Overview:

High fluorescence yield
Large Stokes-shift (89 nm)
Good photostability
Moderately hydrophilic
Good solubility in polar solvents
Coumarin derivate, uncharged
Low molar mass: 343.42 g/mol
Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

ATTO 390 Datasheet

ATTO 390 Fluorescent Dye Excitation and Emission Spectra

Optical Properties:

λ_ex = 390 nm

λ_em = 479 nm

ε_max = 2.4×10⁴

Φ_f = 0.90

τ_fl = 5.0 ns

Brightness = 21.6

Laser = 365 or 405 nm

APC (Allophycocyanin)

Overview:

High quantum yield
Large phycobiliprotein
6 chromophores per molecule
Isolated from red algae
Molecular Weight: 105 kDa
Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

APC Datasheet

APC Fluorophore Absorption and Emission Spectrum

Optical Properties:

λ_ex = 650 nm

λ_em = 660 nm

ε_max = 7.0×10⁵

Φ_f = 0.68

Brightness = 476

Laser = 594 or 633 nm

Filter set = Cy®5

Streptavidin

Properties:

Homo-tetrameric protein purified from Streptomyces avidinii which binds four biotin molecules with extremely high affinity
Molecular weight: 53 kDa
Formula: C₁₀H₁₆N₂O₃S
Applications: Western blot, immunohistochemistry, and ELISA

Streptavidin Datasheet

Biotin

Properties:

Binds tetrameric avidin proteins including Streptavidin and neuravidin with very high affinity
Molar mass: 244.31 g/mol
Formula: C₁₀H₁₆N₂O₃S
Applications: Western blot, immunohistochemistry, and ELISA*

*The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

Biotin Datasheet

HRP (Horseradish peroxidase)

Properties:

Enzymatic activity is used to amplify weak signals and increase visibility of a target
Readily combines with hydrogen peroxide (H₂O₂) to form HRP-H₂O₂ complex which can oxidize various hydrogen donors
Catalyzes the conversion of:
- Chromogenic substrates (e.g. TMB, DAB, ABTS) into coloured products
- Chemiluminescent substrates (e.g. luminol and isoluminol) into light emitting products via enhanced chemiluminescence (ECL)
- Fluorogenic substrates (e.g. tyramine, homovanillic acid, and 4-hydroxyphenyl acetic acid) into fluorescent products
High turnover rate enables rapid generation of a strong signal
44 kDa glycoprotein
Extinction coefficient: 100 (403 nm)
Applications: Western blot, immunohistochemistry, and ELISA*
- *The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

HRP Datasheet

AP (Alkaline Phosphatase)

Properties:

Broad enzymatic activity for phosphate esters of alcohols, amines, pyrophosphate, and phenols
Commonly used to dephosphorylate the 5’-termini of DNA and RNA to prevent self-ligation
Catalyzes the conversion of:
- Chromogenic substrates (e.g. pNPP, naphthol AS-TR phosphate, BCIP) into coloured products
- Fluorogenic substrates (e.g. 4-methylumbelliferyl phosphate) into fluorescent products
Molecular weight: 140 kDa
Applications: Western blot, immunohistochemistry, and ELISA

AP Datasheet

R-PE (R-Phycoerythrin)

Overview:

Broad excitation spectrum
High quantum yield
Photostable
Member of the phycobiliprotein family
Isolated from red algae
Excellent solubility in water
Molecular Weight: 250 kDa

Applications: The listed applications provide a general overview of potential uses for conjugated antibodies. However, they do not guarantee that every antibody-conjugate combination has been tested or validated for these specific applications.

R-PE Datasheet

R-PE Fluorophore Excitation and Emission Spectra

Optical Properties:

λ_ex = 565 nm

λ_em = 575 nm

ε_max = 2.0×10⁶

Φ_f = 0.84

Brightness = 1.68 x 10³

Laser = 488 to 561 nm

Filter set = TRITC

Nature Recombinant

Species Human

Expression System E. coli

Amino Acid Sequence MIKHVPGGGSV QIVYKPVDLS KVTSKCGSLG NIHHKPGGGQ VEVKSEKLDF KDRVQSKIGS LDNITHVPGG GNKKIETHKL TFRENAKAKT DHGAE

Purity >95%

Other Resources Sonication Protocol

Protein Length Fragment

Protein Size 10.165 kDa

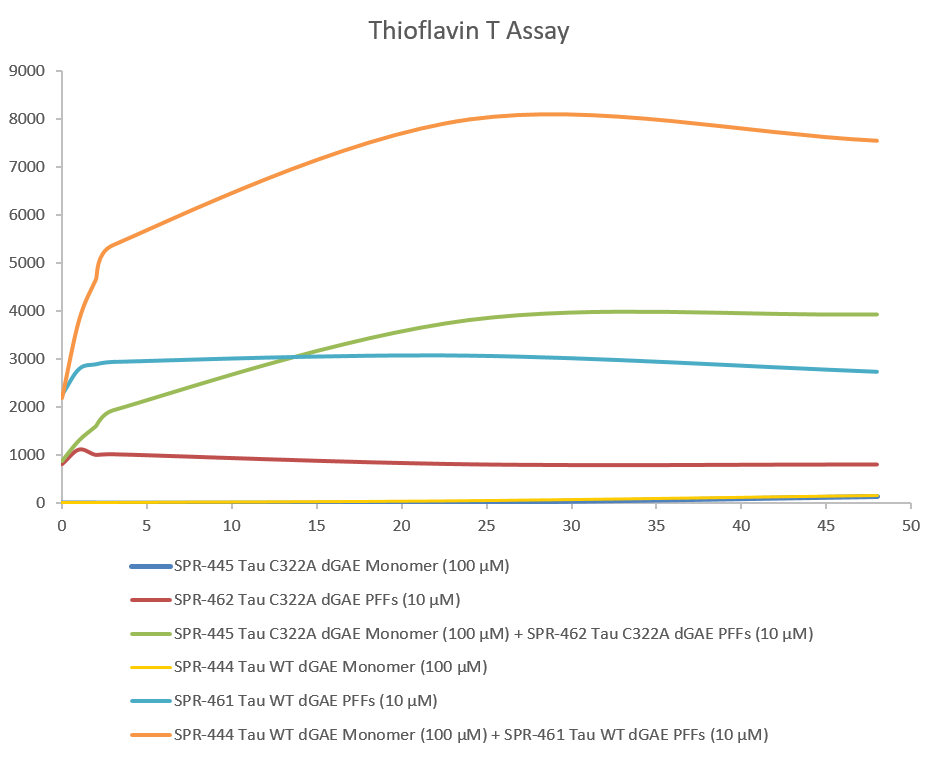

Biological Activity Thioflavin T emission curves show increased fluorescence (correlated to tau aggregation) over time when truncated tau fragment (AA297-391) (dGAE) monomer is combined with truncated tau fragment (AA297-391) (dGAE) Pre-formed Fibrils.

Field of Use Not for use in humans. Not for use in diagnostics or therapeutics. For in vitro research use only.

Properties

Storage Buffer	10mM PB pH7.4, 10mM DTT
Storage Temperature	-80ºC
Shipping Temperature	Dry Ice. Shipping note: Product will be shipped separately from other products purchased in the same order.
Purification	Ion-exchange Purified
Cite This Product	Human Recombinant Tau dGAE (297-391) Pre-formed Fibrils (StressMarq Biosciences \| Victoria, BC CANADA \| Catalog# SPR-461)
Certificate of Analysis	Certified >95% pure using SDS-PAGE analysis. Made with low endotoxin monomer.
Other Relevant Information	For best results, sonicate immediately prior to use. Refer to the Neurodegenerative Protein Handling Instructions on our website, or the product datasheet for further information. Monomer source is catalog# SPR-444.

Biological Description

Alternative Names	Tau dGAE, Tau 297–391, Truncated Tau, Tau fragment 297–391, microtubule-associated tau, MAPT, MAP, Tau-441, Paired Helical Filament-Tau, Phf-Tau, Neurofibrillary Tangle, G Protein Beta1/Gamma2 Subunit-Interacting Factor 1, Isoform 2, tubulin-associated unit, Tau PFFs
Research Areas	Alzheimer's Disease, Axon Markers, Cell Markers, Cell Signaling, Cytoskeleton, Microtubules, MT Associated Proteins, Neurodegeneration, Neuron Markers, Neuroscience, Tangles & Tau
Cellular Localization	Axolemma, Axolemma Plasma Membrane, Axon, Cell Body, Cell membrane, Cytoplasm, Cytoplasmic Ribonucleoprotein Granule, Cytoplasmic Side, Cytoskeleton, Cytosol, Dendrite, Growth cone, Microtubule, Microtubule Associated Complex, Neurofibrillary Tangle, Neuronal Cell Body, Nuclear Periphery, Nuclear Speck, Nucleus, Peripheral membrane protein, Plasma Membrane, Tubulin Complex
Accession Number	NP_005901.2
Gene ID	4137
Swiss Prot	P10636
Scientific Background	Tau protein, encoded by the MAPT gene (UniProt ID: P10636), plays a pivotal role in stabilizing neuronal microtubules and maintaining axonal integrity. In neurodegenerative disorders such as Alzheimer’s disease and frontotemporal dementia, Tau undergoes pathological misfolding and aggregation into insoluble fibrils, forming neurofibrillary tangles—a hallmark of tauopathies. The dGAE fragment of Tau (residues 297–391) encompasses the core region of the protein’s microtubule-binding domain and is intrinsically prone to self-assembly into β-sheet-rich fibrillar structures. Pre-formed fibrils (PFFs) derived from Tau dGAE serve as a robust and reproducible model for studying the molecular mechanisms of Tau aggregation, seeding, and propagation in vitro and in vivo. These fibrils mimic the structural and biochemical properties of pathological Tau aggregates observed in human brains, enabling researchers to dissect the prion-like behavior of Tau and its role in neurotoxicity. Tau dGAE PFFs are instrumental in evaluating therapeutic strategies aimed at inhibiting fibril formation, blocking intercellular transmission, and enhancing aggregate clearance. Their use accelerates the development of targeted interventions and biomarker discovery, positioning them as a cornerstone in translational neurodegeneration research.
References	1. www.alz.org/alzheimers-dementia/facts-figures 2. Alzheimer, A. Über eine eigenartige Erkrankung der Hirnrinde. Allg. Z. Psychiatr. Psych.-Gerichtl. Med. 64, 146–148 (1907) 3. Al-Hilaly, Y.K. et al. Alzheimer's Disease-like Paired Helical Filament Assembly from Truncated Tau Protein Is Independent of Disulfide Crosslinking. J. Mol. Biol. 429(23):3650-3665 (2017)

Product Images

TEM of Active Human Recombinant Truncated Tau Fragment (AA297-391) (dGAE) Protein Pre-formed Fibrils (SPR-461)

<p>Thioflavin T is a fluorescent dye that binds to beta sheet-rich structures, such as those in tau fibrils. Upon binding, the emission spectrum of the dye experiences a red-shift and increased fluorescence intensity. Thioflavin T emission curves show increased fluorescence (correlated to tau aggregation) over time when truncated tau fragment (AA297-391) (dGAE) monomer is combined with truncated tau fragment (AA297-391) (dGAE) Pre-formed fibrils .</p>

Thioflavin T is a fluorescent dye that binds to beta sheet-rich structures, such as those in tau fibrils. Upon binding, the emission spectrum of the dye experiences a red-shift and increased fluorescence intensity. Thioflavin T emission curves show increased fluorescence (correlated to tau aggregation) over time when truncated tau fragment (AA297-391) (dGAE) monomer is combined with truncated tau fragment (AA297-391) (dGAE) Pre-formed fibrils .

Reviews

1 review for Tau dGAE (297-391) Pre-formed Fibrils

5 out of 5

StressMarq Biosciences March 17, 2023:

Based on validation through cited publications.

Add a review

Tau dGAE (297-391) Pre-formed Fibrils

Streptavidin

Biotin

HRP (Horseradish peroxidase)

AP (Alkaline Phosphatase)

Properties

Biological Description

Product Images

Reviews

1 review for Tau dGAE (297-391) Pre-formed Fibrils

Product Citations
